IMPORT DXF DWG
We can design a 3D Unigraphics with the help of AutoCAD 2D sketches to facilitate and speed up our design.

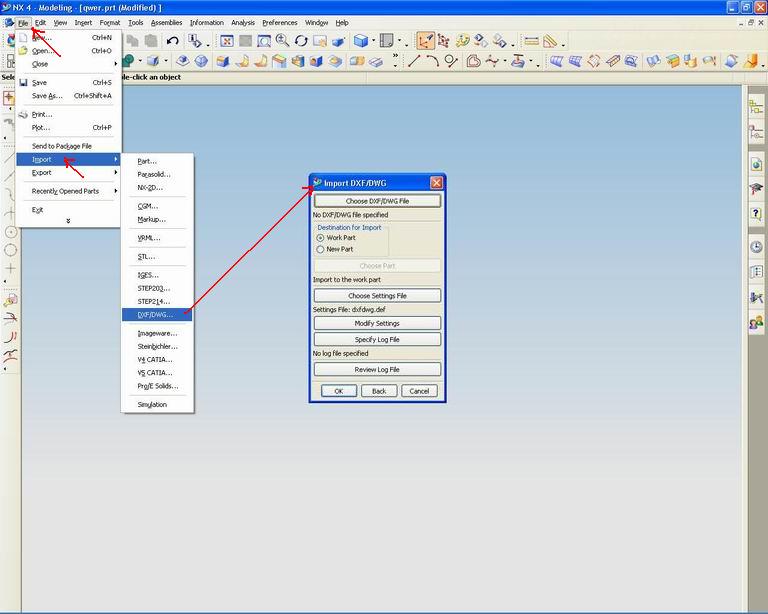

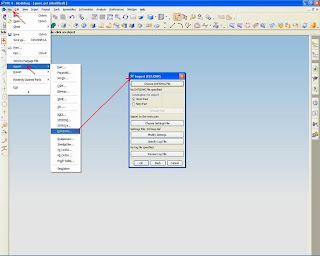

Import command allows us to choose the type of geometric constraints that apply automatically to our sketch.
Unigraphics geometry analysis in an active sketch will implement the chosen limits.
This function can be very useful when we add to the sketch geometry active, especially if the geometry is imported from the system in the form of CAD (DWG)
for STEP BY STEP GUIDE unigraphics simple tutorial please visit.........
www.unigraphicsimpletutorial.blogspot.com
